Equipped with the Intel^® Dual Core Atom™ 330 Processor, ASRock ION 330 series bring you the highest performance with the lowest power consumption.

Compatible with Windows^® 7, we assure every ASRock NetTop ION 330 is the worldwide first ION system passed Windows^® 7.

ASRock ION 330 series come with the powerful NVIDIA^® ION™ graphics processor which is well-known for it’s outstanding graphics performance.

Save most power consumption with ASRock NetTop ION 330 series ! By adopting Nuvoton NCT6775F IC, these two models have achieved the EuP2.0 standard which indicates the total AC power consumption of the completed system is under 0.5W in off mode.

Get the Cinema-Style Sound from your PC! With DTS, ASRock ION 330 series can let you enjoy a better way of experiencing music, movies and games. It delivers the advanced and excellent audio quality, enables you to hear every detail in riveting surround sound.

ION 330HT-BD features the BD Combo which not only supports Blu-ray disc, but also capable of burning and reading DVD and CD. It definitely brings you the efficient, stable data transfer, the dazzling audio and visual experience.

Much faster wireless connections over longer distance! High speed networking of 802.11n (150Mbps) for fast download, file transfer and media streaming.

Unprecedentedly, ASRock ION 330 series are capable to support RAID 0, 1 by adopting the second 2.5” HDD in the 2.5 Liter system! You can enjoy a faster transfer speed and never be afraid the data loss or damages!

Powered eSATA/USB connector can not only support USB device, but also eSATA devices without additional power source. It is compatible with both eSATA and USB interfaces.

Enjoy more of your favorite entertainment by MCE (Media Center Edition) remote controller! The MCE features the entertainment center which allows you to enjoy a more convenient way of watching DVDs, TV, listening to music, and so on by the easy-operate remote controller.

We require every ASRock NetTop pass the Energy Star 5.0 standard, in order to avoid unnecessary power consumption.

High-Definition Multimedia Interface eliminates the need for signal conversions and ensures the best quality video.

Allows you to turn on your PC and boot up to Windows^® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), but also provides clean OS and saves the most power energy.

ASRock OC Tuner is a user-friendly ASRock overclocking tool which allows you to guard your system by hardware monitor function and overclock your hardware devices to get the best system performance.

Product Specifications

Specifications
CPU	- Intel® Atom™ 330 1.6GHz (Dual core)
Chipset	- NVIDIA® ION™ graphics processor
Memory	- Support DDR2 800MHz, 2 x SO-DIMM slots, default 2GB (2 x 1GB), Maximum up to 4GB* *Due to the CPU limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32 / 64-bit OS.
VGA	- NVIDIA® ION™ Graphics, support DX10 / Full HD 1080p (Blu-ray)* playback *Blu-ray disc is supported by Blu-ray driver.
HDD	- 320GB 2.5" HDD, capable to support RAID 0, 1 by adopting the 2nd 2.5" HDD
ODD	- BD Combo* *For CD-RW write type, only support 4x, 8x, 10x CD-RW Disc format.

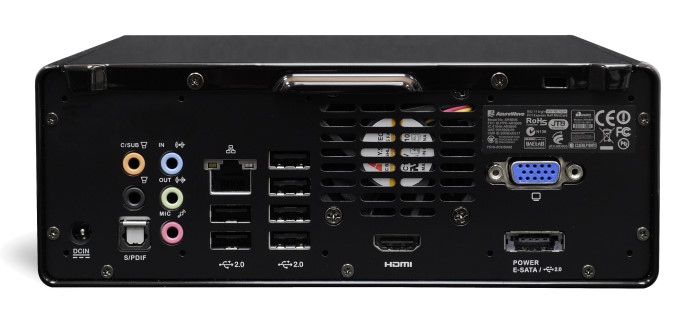

I/O	- 1 x HDMI, 1 x D-Sub VGA, 6 x USB 2.0, 1 x S/PDIF, 1 x Powered eSATA/USB* *For Powered eSATA function, Hot Plug function is supported in RAID / AHCI mode only. IDE mode does not support Hot Plug function.
LAN	- Gigabit LAN
Sound	- 7.1 Ch HD Audio with DTS
System Acoustic	- Below 26dB
WiFi	- 802.11 b/g/n wireless LAN
Remote Controller	- MCE Remote Controller
Power Unit	- 65W/19V Adapter
Dimension	- 195mm(W) x 70mm(H) x 186mm(L)
Volume (liters)	- 2.5L
Weight	- 1.7Kg
Supported OS	- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Please noted that AHCI/RAID mode is not supported under Windows^® XP/XP 64bit OS.
